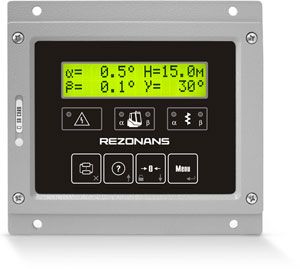

Control System for Drilling Machines OGM25.5

Features
  • control of drill coordinates, lengthwise and transversal angles of drill tower and drilling depth
  • built-in cutout relays - no external relays are necessary
  • power drilling control
  • internal datalogger with real-time clock

Applications

The control system OGM25.5 was designed for crane-boring and drilling machines with short and long augers.

Each type of drilling machines has their version of OGM25.5 system. OGM25.5 versions have different package contents, sensors, displays, software and supply voltage.

Functionality

  • control of drill coordinates, lengthwise and transversal angles of drill tower and drilling depth;
  • power drilling control;
  • hydraulics oil pressures control (in 3 points)
  • record of drilling machine data (internal datalogger);
  • automatically blocks drilling machine after moving the drill from working area;
  • real-time clock.

Applications example

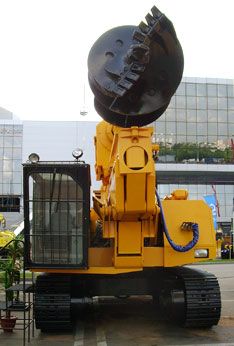

Stroymash drilling machine
