Rated capacity limiter OPG11
Features:
  • calibration procedure on the lift without additional devices
  • two switched outputs for blocking of lift
  • built-in cutout relays — no external relays are necessary
  • digital interface for conrol systems

Description

The rated capacity limiter OPG11 was designed for truck-mounted arial lifts and cranes. OPG11 generates signals for switching off hoisting mechanisms, which decrease lift stability when weight of load is over normative.

OPG11 consists of unified sensors and controller. Each type of lifts has their version of OPG11 limiter.

The limiter conforms to PB 10-611-03 and PB 10-257-98 requirements of Rostekhnadzor (Russian Federal Service for Ecological, Technical and Atomic Supervision).

Functionality

  • generates sound and light signals when weight of load is in range 100–110%;
  • generates sound and light signals, switching off hoisting mechanisms when weight of load is over 110%.

Ordering Code

Code Type Description
OPG11-04 Truck mounted arial lifts Load is measured using force sensors. It is installed in basket hardware.
OPG11-05 Truck mounted arial lifts with two cradles
OPG11-06 Truck mounted arial lifts Load is measured using beam-type force sensors. It is installed between basket and header of lift boom.
OPG11-07 Truck mounted arial lifts with two cradles
OPG11-08 Truck mounted cranes Load is measured using pressure sensor. It is installed into head end of hydraulic cylinder or into pipe bend.
OPG11-09 All types Load is measured using force sensing mechanism. It is installed under the false floor of backet.

Technical Data

Parameter Value
Measuring range:
  • weight of load (OPG11-04 – OPG11-07 and OPG11-09 versions)
    50–500 kg
    • pressure (OPG11-08 version)
      0–250 bar
      Accuracy ±5%
      Force outputs 2
      Maximum force outputs current 5 A
      Interface RBus
      Connector Tyco 963215-1 plug (16 way male)
      Supply voltage 10 – 32 V DC
      Maximum consumed current 0,3 A
      Operating temperature range – 40…+125 °C
      Storage/Transport temperature range – 50…+65 °C
      Protection class (to IEC 60529) IP67
      Vibration resistance <50 m/sec2 (at 50…200 Hz)
      Impact resistance <100 m/sec2
      Controller dimensions 115 × 107 × 61 mm
      Controller weight, approx. 0,6 kg

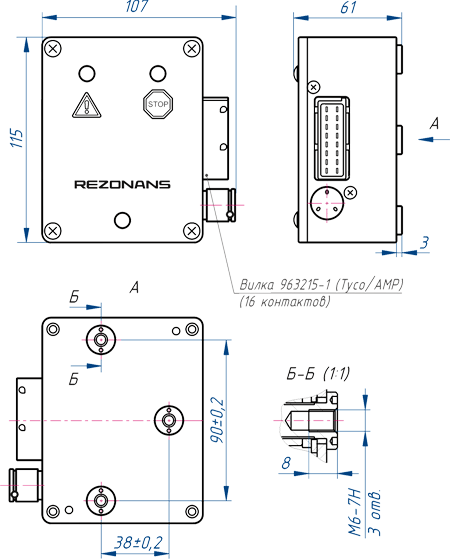

      Controller Dimensions [mm]
