AC Field Detector DL220.16

Features directional antenna two discrete three-state inputs two power outputs with short circuit protection included solid-state angle sensor (optional) digital interface durable aluminium housing

Measure intensity of electromagnetic field of overhead AC power lines 50Hz. Used as part of safety devices to protect lifting crane boom head against dangerous approach to power line.Have digital input for connection of the load gripper uppermost position limit switch.DL220.14 and DL220.14-01 modifications have two safe power keys for clearance lamp and headlight control.DL220.14-01 modification has an integrated sensor of inclination angle relative to the gravitational vertical.

Technical Data

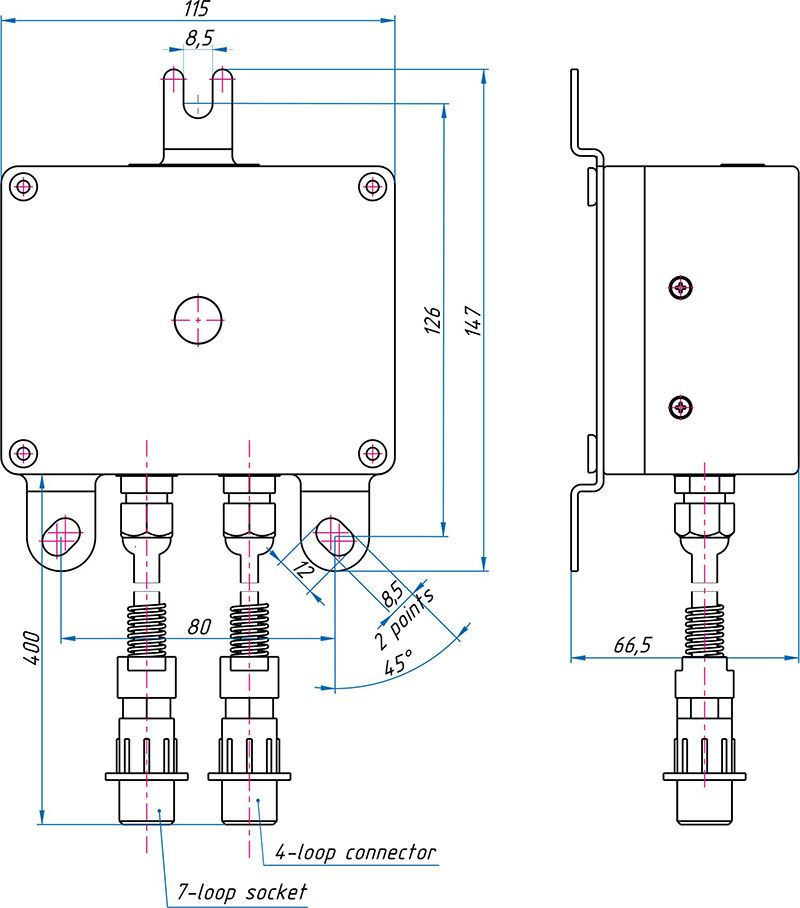

Dimensions [mm]

Technical description PDF, 135KB
