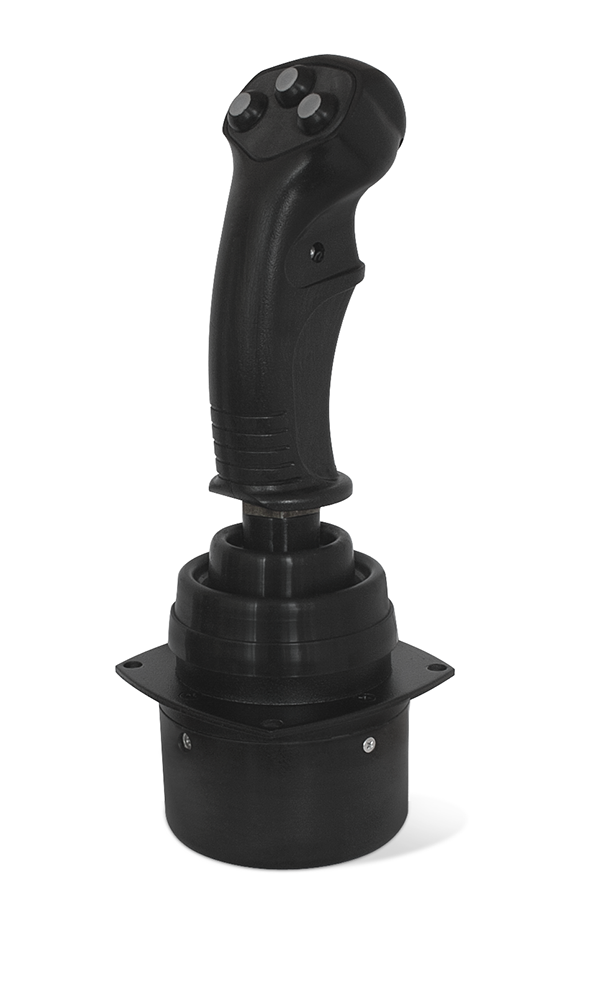

AURSP33 Joysticks
 |
Key features
- combination of handle (manipulator) and electronic module
- up to three function buttons on the joystick top
- joystick modifications with a sensor of operator’s hand on the control handle
- digital interface-universal supply voltage 12/24V
- joystick modifications with a status indicator
Designed for remote proportional control of hydraulic and electric drives of road construction machinery.
Model designation
| AURSP33 | . | 1 | - | 2 | . | 0 | 00 | |||||||||
| Batch | Design of front panel and operation algorithm of its controls | |||||||||||||||
| Interface type:
1 — RBus 2 — CAN |
Number of joysticks connected
to one communication line:
0 — 2 1 — 4 |
|||||||||||||||
| Operator’s hand sensor:
1 — installed; 2 — not installed |
||||||||||||||||
Main specifications
Overall and mounting dimensions
 |
Technical manual PDF, |
|
