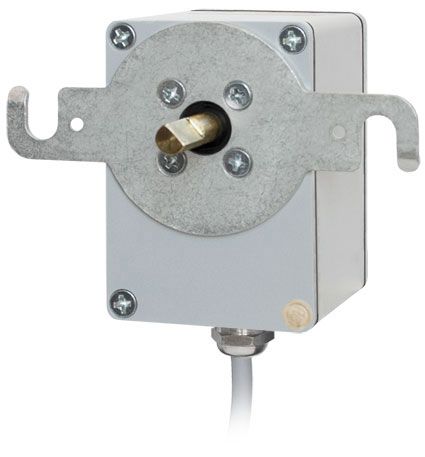

Rotation Transducer DPM20.9
 |
Key features:
- digital data transmission interface
- tainless steel shaft
- robust metal housing
- electronic adjustment of the input shaft position without mechanical regulation
- digital input for limit switch connection
Used as part of monitoring and control systems of road construction machinery to locate their mechanisms.
| DPM20.9 | – | 128 | . | 01 | |||||
| Product code | Customer specification:
01 — with amplification module, sensor address 0x19. 02 — without amplification module, sensor address 0x1C. 03 — without amplification module, sensor address 0x1B. 04 — without amplification module, sensor address 0x1A. 11 — without amplification module, sensor address 0x19. |
||||||||
| Number of rotations
064 - 64 rotations 4096 digital 128 - 128 rotations 4096 digital 256 - 256 rotations 4096 digital 512 - 512 rotations 32768 digital |
|||||||||
Main specifications

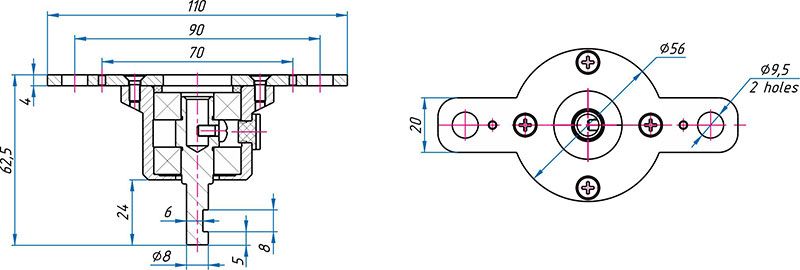

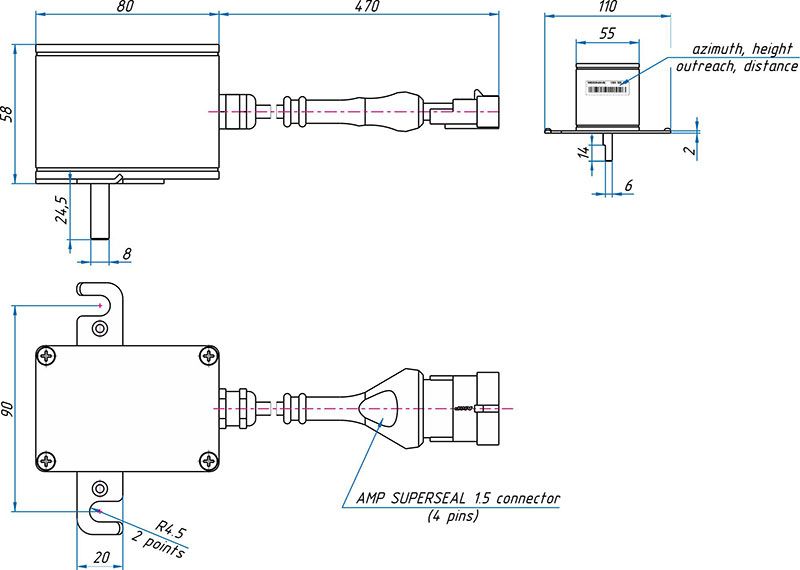

Overall and mounting dimensions

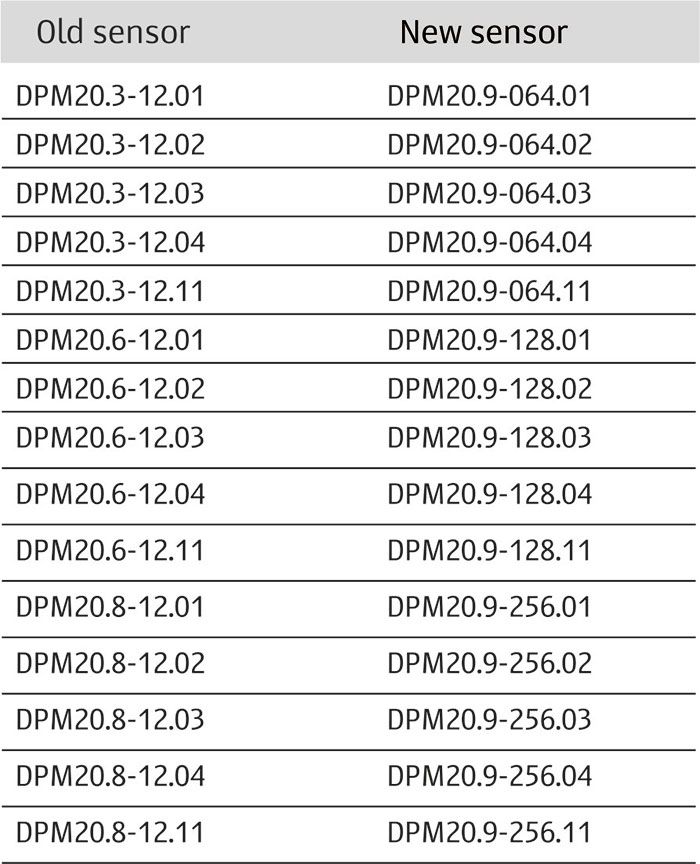

Support of the sensors currently in use
 |
Technical description PDF, |
|
