Features
- compact aluminium housing;
- monochrome graphical LCD (133×64 resolution);
- RAM-type mounting bracket;
- analog current input (4–20 mA) and switched output (4 A).

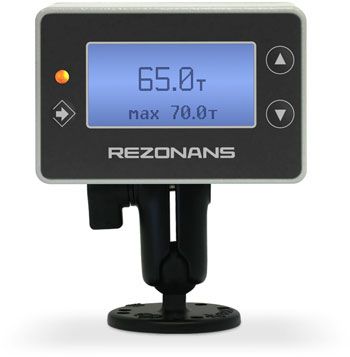

The BI06 graphics console was designed for control and communication in electronics control systems of construction machineries.
Also the BI06 provides accurate measurement and displays values from sensors with output signal 4–20 mA and RBus interface.
|
 |
Technical Data
| Indication |
|
|
resolution 133×64, view area size 64×32 mm |
|
1 (yellow/red) |
| Operating control |
3 buttons, 2-state switch |
| Acoustic alarm |
dynamic loudspeaker |
| Connection interface |
RBus |
| Analog current input (4–20 mA) |
1 |
| Switched output (4 A) |
1 |
| Connector |
AMP Superseal 1,5 plug |
| Supply voltage |
10 – 32 V DC |
| Consumed current |
0,1 A max |
| Operating temperature range |
–40…+60 °C |
| Storage/Transport temperature range |
–45…+70 °C |
| Protection class (to IEC 60529) |
IP54 |
| Vibration resistance |
<50 m/sec2 (at 50…200 Hz) |
| Impact resistance |
<100 m/sec2 |
| Dimensions (without ball joint) |
98 × 64 × 34 mm |
| Weight, approx. |
0,5 kg |

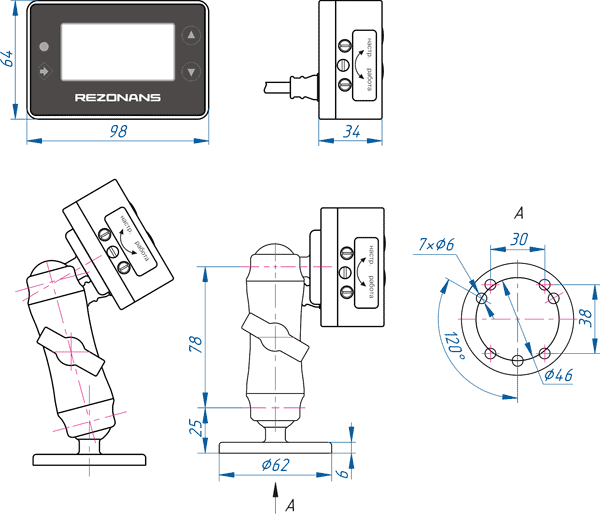

Dimensions [mm]
|
