Interactive WVGA Graphic Console BI05

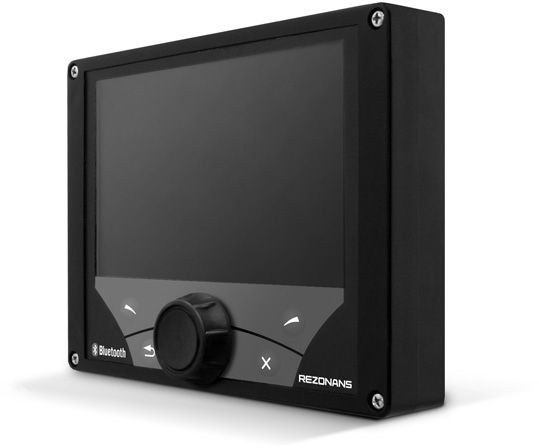

Interactive graphics console BI05.1

The BI05 graphics console was designed for communication in electronics control systems of construction machineries.

The operating panel has standard hard-wire (CANopen, LIN, USB) and wireless (Bluetooth or Wi-Fi) interfaces.

For communication with operator the panel has rotary knob and 4 buttons. The button functions changed against the operating conditions by the panel software.

Features

  • graphic TFT LCD 7" with 262114 colors;
  • enable connection two video cameras;
  • Bluetooth and USB interfaces.

On-dash mounting version

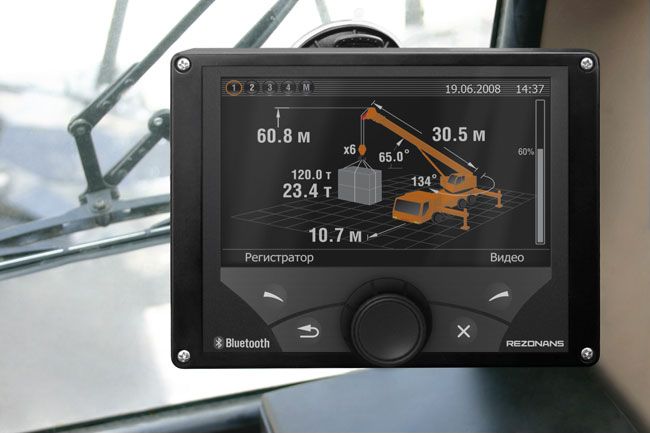

Graphic console in crane driver cab

Technical Data

Parameter Value
Display
  • type and format
    graphic LCD TFT, 16:9
    • size
      7" (152.4 × 91.4 мм)
      • resolution
        800×480 pixels
        • colors
          262114
          Interfaces CANopen, RBus, USB 2.0
          Wireless communication Bluetooth (WiFi — optional)
          Operating control rotaty knob, 4 buttons
          Supply voltage 8 – 32 V DC
          Consumed power 5 Wt max
          Operating temperature range –40…+55 °C
          Storage/Transport temperature range – 50…+65 °C
          Protection class (to IEC 60529) IP52
          Vibration resistance <50 m/sec2 (at 50…200 Hz)
          Impact resistance <100 m/sec2
          Dimensions 200 × 150 × 55 mm
          Weight, approx. 0,9 kg
