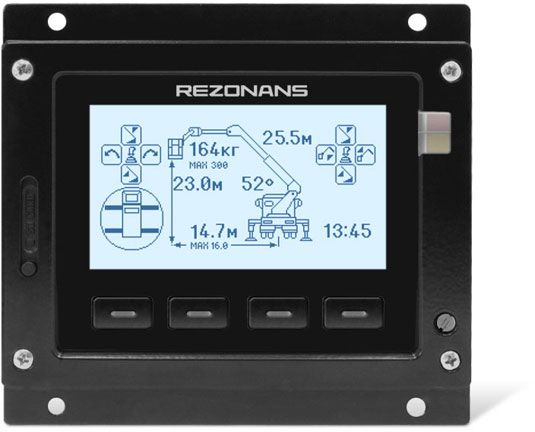

Operator console BI04.60

Features

  • monochrome LCD (240 × 128) with backlight;
  • 16Bit microcontroller based;
  • work at low temperatures (internal display's heating);
  • internal data-logger (with real time clock);
  • Secure Digital socket for data transfer;
  • built-in or free-standing versions.

Technical Data

Parameter Value
Indication
  • display
    grahical LCD (240×128)
    • light panels
      2 (yellow, red)
      Acoustic alarm dynamic loudspeaker
      Connection interface RBus
      Connectors
      • supply and interface
        AMP Superseal 1,5 plug (4 contacts)
        • datalogger
          Secure Digital socket
          Supply voltage 8 – 32 V DC
          Consumed current 2 A max
          Operating temperature range –40…+55 °C
          Storage/Transport temperature range – 50…+65 °C
          Protection class (to IEC 60529) IP54
          Vibration resistance <50 m/sec2 (at 50…200 Hz)
          Impact resistance <100 m/sec2
          Dimensions:
          • in-dash mounting
            175 × 160 × 71 mm
            • with installation housing and ball joint
              175 × 125 × 71 mm
              Weight, approx. 0,75 kg

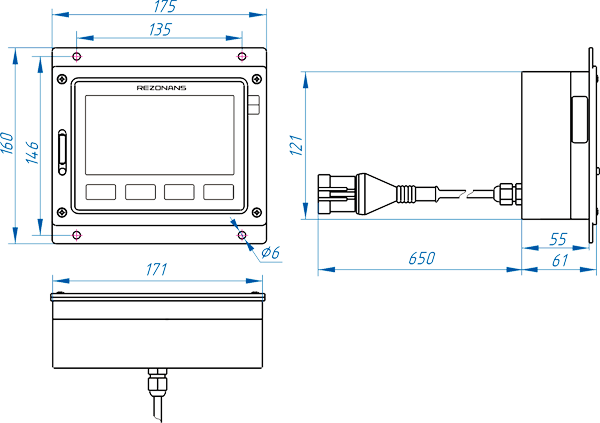

              In-dash mounting version dimensions [mm]
