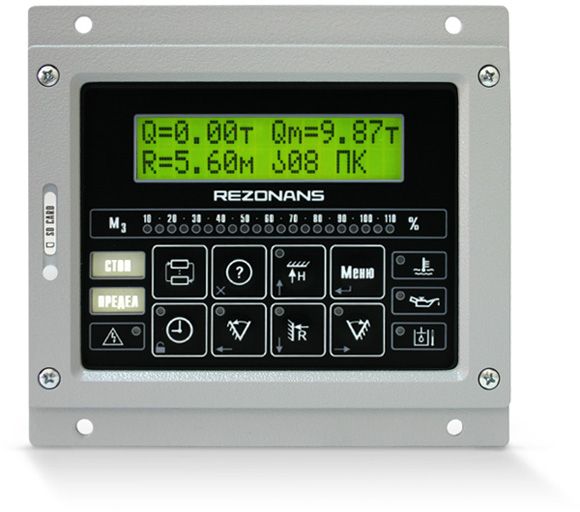

Operator Console BI04.14

Products
Electronic Control Systems
SBUC
Rated Capacity Indicators
Display Consoles
BI05
BI04.80
BI04.60
BI04.40
BI04.14
BI06
Tools
Components
Sensors
Joysticks
Instruments clusters and gauges
Voltage Changers
Press Center
Service and guarantee
Our company
Sitemap and search

Features

  • 16Bit microcontroller based
  • LC-display (16 chars × 2 lines)
  • work at low temperatures (internal display's heating)
  • internal data-logger (with real time clock)
  • built-in or free-standing versions

Operating console for external or free-standing installation with back-lit display. Eight buttons keyboard for menu navigation and functions selection.

Technical Data

Parameter Value
Indication
  • display
    		 LCD (16 chars × 2 lines)
    • light panels
      		 2 (yellow, red)
      • LED indicators
        		 30
        Operating control 8 buttons on faceplate
        Acoustic alarm dynamic loudspeaker
        Connection interface RBus
        Discrete inputs no
        Outputs no
        Supply voltage 8 – 32 V DC
        Consumed current 2 A
        Operating temperature range – 40…+55 °C
        Storage/Transport temperature range – 50…+65 °C
        Protection class (to IEC 60529) IP54
        Vibration resistance <50 m/sec2 (at 50…200 Hz)
        Impact resistance <100 m/sec2
        Dimensions:
        • in-dash mounting
          		 175 × 160 × 71 mm
          • with installation housing and ball joint
            		 175 × 125 × 71 mm
            Weight, approx. 0,75 kg
