Operator consoles wired, mobile

Features
  • mobile design
  • 128x64 graphic LCD display
  • CAN interface according to SAE J1939
  • emergency stop button

Example of a truck-mounted hydraulic platform control console

Пульт для автогидроподъемников

Functions

—  displaying controlled parameters on 128x64 graphic LCD display enabling information reading at any ambient light level
—  transmission of control status signals to SBUK controller via the CAN bus
— control system diagnostic and setting without additional equipment
—  software update of devices connected to the CAN bus
—  signal transmission from the emergency stop button via the CAN bus. Furthermore, consoles have direct output from the emergency stop button allowing to open an actuator circuit
— fast software update with USB Flash Drive or SD card (depending on console version).

Main specifications

PU6.1   PU6.2    PU6.3    PU6.4    PU6.5    PU6.6    PU6.7
ParamValue

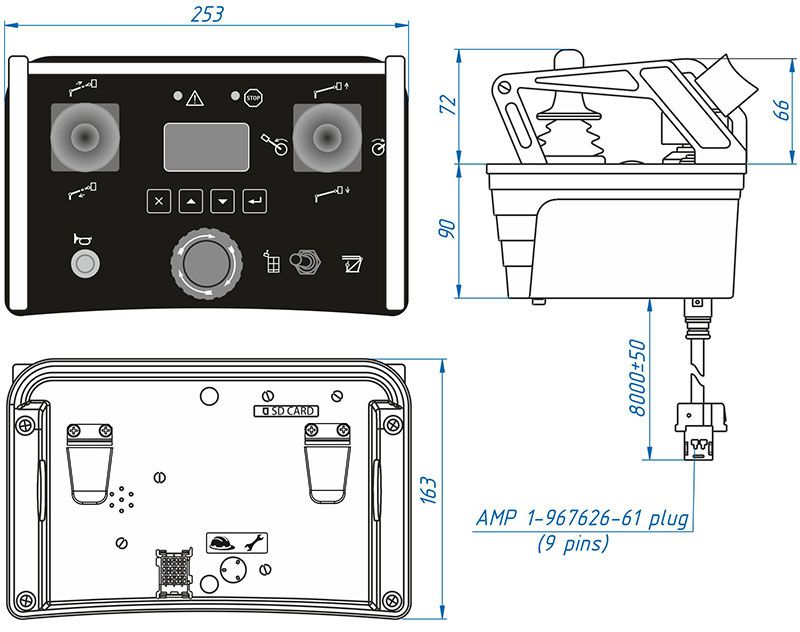

Overall and connection dimensions of PU6.2 control console


Control consoles
PDF, 3.6Mb
