Wind Speed Sensor DSW1.12
Features:
  • two minute measurement result averaging
  • balance-beam for upstanding alignment
  • digital interface
  • discrete input

The sensor provides measurement of wind speed in m/sec.

The DSW1.12 was designed for mobile control systems. It uses for detect powerful flaws.

Technical Data

Parameter Value
Measuring ranges 1,5 to 35 m/sec
Accuracy ±2 m/sec
Connection interface RBus
Connector AMP Superseal 1.5 plug
Supply voltage 8 – 32 V DC
Operating temperature range – 40…+55 °C
Storage/Transport temperature range – 60…+65 °C
Protection class (to IEC 60529) IP54
Vibration resistance <50 m/sec2 (at 50…200 Hz)
Impact resistance <100 m/sec2
Dimensions (diameter × length):
  • sensor
    64 × 161 mm
    • transducer with balance-beam
      256 × 161 mm
      Weight (with balance-beam), approx. 0,35 kg

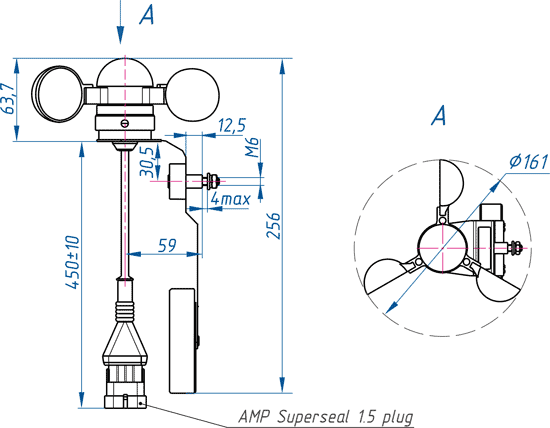

      Dimensions [mm]
