TSS Force Sensors

Features
  • orce measurement up to 100 t
  • high reading accuracy and stability through the integrated calibration and temperature compensationи
  • digital data transmission interface
  • digital input for limit switch connection

Measure force as a component of safety devices and control systems for lifting applications.

May be used in various industrial automatic monitoring, protection and control systems, weighing systems and road construction machinery.

Model designation

    TCC 10000 P   1   1   5 1
Product code:                                           Customer specification:
For digital signal:
1 —  address setting – 0x20, 0x21, 0x22
2 — digital input status transmission, address 0x20
3 —  address setting – 0x04, 0x06, 0x09
Measuring range (kgf)
Signal type:
E — voltage
Т — current
Р — digital
                        Mounting:
1 — axial
2 — connecting rod – hole М12
3 — «hole М20х1.5 – hole М20х1.5»
4 — «ole М12х1.75 – hole М12х1.75»
5 — «hole М30х2 – hole М30х2»
Interface:
Digital:
1 — RBus
2 — CAN
3 — RS485
Current
1 — from 4 до 20 mA
2 — from 0 до 20 mA
Voltage:
1 — from 0,5 to 4,5 VВ
2 — from 0 to 5 V
                    Electrical connection:
0 — without connector
1 — AMP Superseal 1.5 connector (4 pin)
2 — AMP Superseal 1.5 connector (2 pin)

Main specifications

Sensor designs

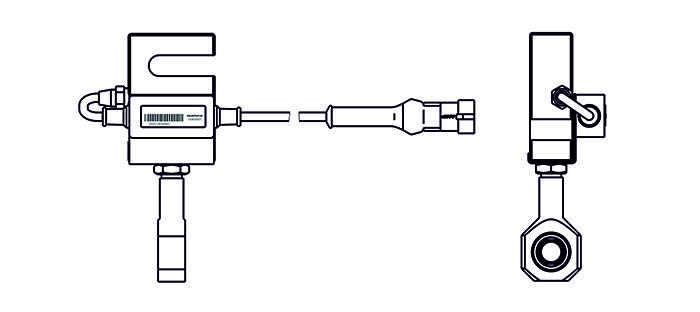

Connecting Rod – Hole

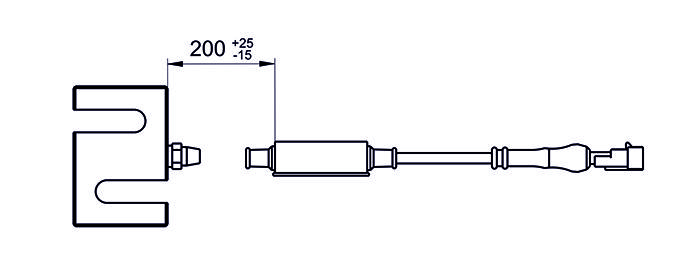

Hole – Hole

Technical manual
PDF, 547 Kb
