Tension Force Transducer DST5.2
Features:
  • measurement of compression force until 5000 kgf
  • robust steel housing
  • digital interface
  • one discrete input

The tension force transducer provides measurement of compression force until 5000 kgf.

It was designed for mobile control and rated capacity limiter systems.

Technical Data

Parameter Value
Measuring range 0 to 5000 kgf
Accuracy ±3% FS typ.
Sensor deformation type compression
Load limit 7000 kgf
Connection interface RBus
Supply voltage 8 – 32 V DC
Operating temperature range – 40…+65 °C
Storage/Transport temperature range – 60…+80 °C
Protection class (to IEC 60529) IP56
Vibration resistance <50 m/sec2 (at 50…200 Hz)
Impact resistance <100 m/sec2
Dimensions 107 × 90 × 57 mm
Weight, approx. 1,6 kg

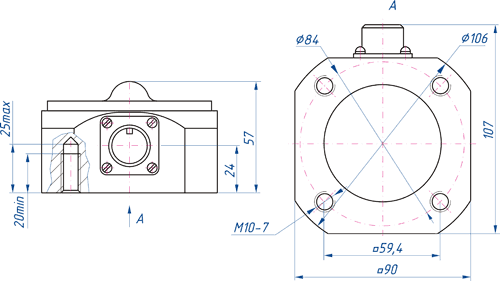

Dimensions [mm]
