Instrument cluster PP7.1-01

Features

monochrome graphical LCD (128 × 64 resolution)
dimensions corresponding COBO group steering columns
exceptional reliability drive of meters
internal hour meter and clock
beep when you turn on alarm indicators
dynamic loudspeaker
LED backlight of gauges and meter needles

The multifunctional instrument claster PP7.1-01 provides simultaneous measurement of various vehicle parameters, including pressure, temperature, fuel, voltage, speed, engine angular velocity and hour meter.

It is used in construction, transport and road machineries, industrial electricity generating plants and etc.

The instrument cluster provides accurate measurement and display:

vehicle speed;
engine coolant temperature — from 20 to 120 ��;
engine oil pressure — to 10 kPa;
transmission pressure oil — to 15 kPa;
pneumatic air pressure — to 10 kPa;
engine angular velocity (tachometer) — to 2000 rpm;
fuel tank level;
voltage indicator — from 18 to 32 V DC;
real time clock;
hour meter — to 99999 hour.

The dashboard has control lamps of necessary color:

low engine oil pressure;
high engine coolant temperature;
engine air cleaner clogging;
low pneumatic air pressure;
low transmission oil pressure;
transmission cleaner clogging;
cleaner clogging of hydraulic pumping unit;
high oil temperature of hydraulic pumping unit;
cleaner clogging of hydrovolumetric steering control;
high oil temperature of hydrovolumetric steering control;
low fuel tank level;
battery discharge;
gear-shift mechanism neutral position;
stoplights on;
differential hold on;
turn indicators on;
driving lamps on.

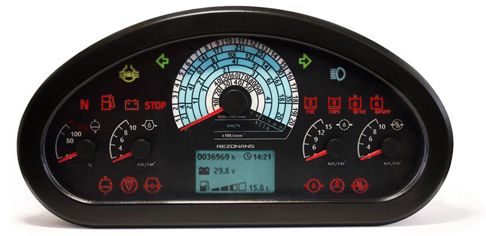

Faceplate

1. Stoplights on, 2. Battery discharge, 3. Gear-shift mechanism neutral position, 4. Low fuel tank level, 5. Engine coolant temperature, 6. Engine oil pressure, 7. Low engine coolant temperature, 8. Engine air cleaner clogging, 9. Low engine oil pressure, 10. Multifunctional graphical LCD witch clock, hour meter and fuel tank level, 11. Low transmission oil pressure,12. Transmission cleaner clogging, 13. Low pneumatic air pressure, 14. Trasmission oil pressure, 15. Pneumatic air pressure, 16 High oil temperature of hydraulic pumping unit, 17. High oil temperature of hydrovolumetric steering control, 18. Cleaner clogging of hydrovolumetric steering control, 19. Driving lamps on, 20. Cleaner clogging of hydraulic pumping unit, 21. Tachometer and speedometer, 22. Turn indicators, 23. Differential hold on.

Application-specific adaptations can be created on request.

Technical Data

Supply voltage 18 – 32 V DC

Analog resistance inputs 5

Measuring frequency range for engine angular velocity 0 – 5 kHz

Control lamps

close on to positive wire
9

close on to ground
7

Connector Tyco/AMP 966658-1 plug

Operating temperature range – 40…+55 °C

Storage temperature range – 50…+65 °C

Protection class (to IEC 60529)

faceplate
IP54

back part
IP3x

Vibration resistance <50 m/sec² (at 50…200 Hz)

Impact resistance <100 m/sec²

Dimensions 290 × 145 × 68 mm

Weight, approx. 1,4 kg

Supply voltage	18 – 32 V DC
Analog resistance inputs	5
Measuring frequency range for engine angular velocity	0 – 5 kHz
Control lamps
close on to positive wire	9
close on to ground	7
Connector	Tyco/AMP 966658-1 plug
Operating temperature range	– 40…+55 °C
Storage temperature range	– 50…+65 °C
Protection class (to IEC 60529)
faceplate	IP54
back part	IP3x
Vibration resistance	<50 m/sec² (at 50…200 Hz)
Impact resistance	<100 m/sec²
Dimensions	290 × 145 × 68 mm
Weight, approx.	1,4 kg

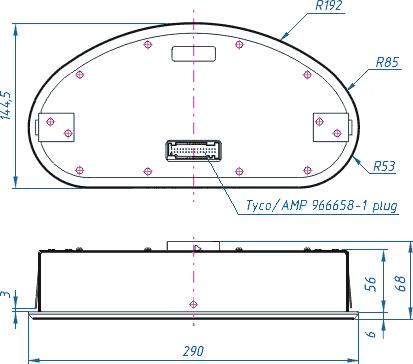

Dimensions [mm]
