Control Module BVN2.2

Products

Electronic Control Systems

BVN2.2

self-leveling controller

electrohydraulic controllers

Sensors

Joysticks

Instruments clusters and gauges

Voltage Changers

Press Center

Service and guarantee

Our company

Features:

commutating 13 circuit 380 V AC
3 discrete inputs rated at 540 V
220 V AC supply voltage
output status indicator

The controller was designed for commutating of resistive and inductive loads and converting analog and discrete inputs in electronic control and rated capacity limiter systems.

Technical Data

Parameter	Value
Discrete inputs (2 state — closed, opened)	3
Discrete inputs voltage	150 – 540 V AC/DC
Force output	13
Maximum force output current	2 A
Maximum force output voltage
AC voltage	380 V
DC voltage	220 V
Interfaces
for sensors	RBus
for control modules and operator consoles	RS-485
Connectors
supply, inputs and outputs	36×M3 screw
RBus and RS-485 intrfaces	AMP 963215-1 plug (16 way male)
Supply voltage	~220±10% V AC
Maximum consumed current	0,2 A
Operating temperature range	– 40…+125 °C
Storage/Transport temperature range	– 50…+65 °C
Protection class (to IEC 60529)	IP54
Vibration resistance	<50 m/sec² (at 50…200 Hz)
Impact resistance	<100 m/sec²
Dimensions	263 × 168 × 91 mm
Weight, approx.	2 kg

Dimensions [mm]

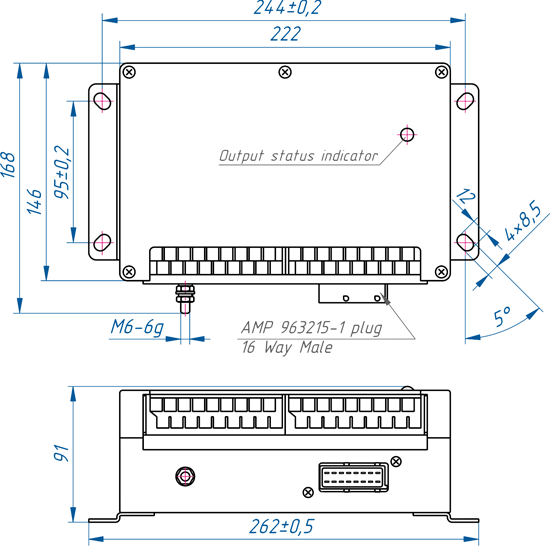

BVN2.2 dimensions (mm)
