Control Module BVN1.8
Features:
  • commutating 5 circuit 380 V AC
  • 2 discrete inputs rated at 380 V AC
  • AC, DC or pulsating voltage supply

The controller was designed for commutating of resistive and inductive loads and converting analog and discrete inputs.

It is used in electronic control and rated capacity limiter systems.

Technical Data

Parameter Value
Discrete inputs (2 state — closed, opened) 2
Force outputs
  • BVN1.8
    5
    • BVN1.8-03
      3
      • BVN1.8-04
        4
        Maximum output current for all outputs 10 A
        Force output voltage 380 AC V max
        Interface RBus
        Supply voltage 18 – 35 V DC
        Maximum consumed current 0,3 A
        Maximum load current 3 A
        Operating temperature range – 40…+125 °C
        Storage/Transport temperature range – 50…+65 °C
        Protection class (to IEC 60529) IP54
        Vibration resistance <50 m/sec2 (at 50…200 Hz)
        Impact resistance <100 m/sec2
        Dimensions 215 × 138 × 62 mm
        Weight, approx. 1,5 kg

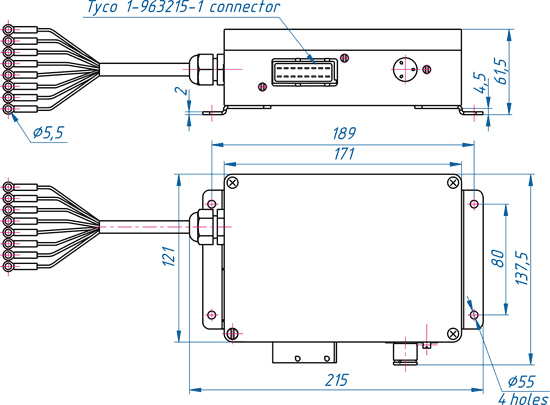

        Dimensions [mm]

        BVN1.8 Overall dimension
