Control Module BVN1.3
Features:
  • 6 power outputs with short circuit protection and rated at inductive loads
  • 16 discrete inputs
  • 4 analog inputs
  • digital interface

The controller was designed for commutating of resistive and inductive loads and converting analog and discrete inputs.

It is used in electronic control and rated capacity limiter systems.

Technical Data

Parameter Value
Discrete inputs:
  • 2 state
    1
    • 3 state
      15
      Analog inputs 4
      Analog inputs resistance 20 to 900 Ohm
      Force outputs (4 A rated) 6
      Maximum output current for all outputs 16 A
      Connection interface RBus
      Supply voltage 8 – 32 V DC
      Maximum consumed current 0,02 A
      Maximum load current 4 A
      Operating temperature range – 40…+65 °C
      Storage/Transport temperature range – 60…+80 °C
      Protection class (to IEC 60529) IP52
      Vibration resistance <50 m/sec2 (at 50…200 Hz)
      Impact resistance <100 m/sec2
      Dimensions 155 × 146 × 63 mm
      Weight, approx. 680 g

      Dimensions [mm]

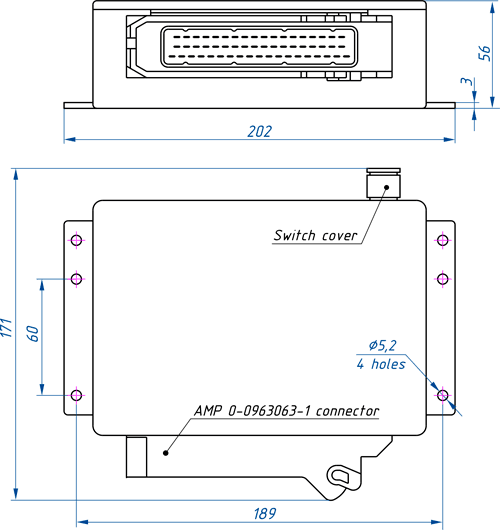

      BVN1.3 overall dimensions
